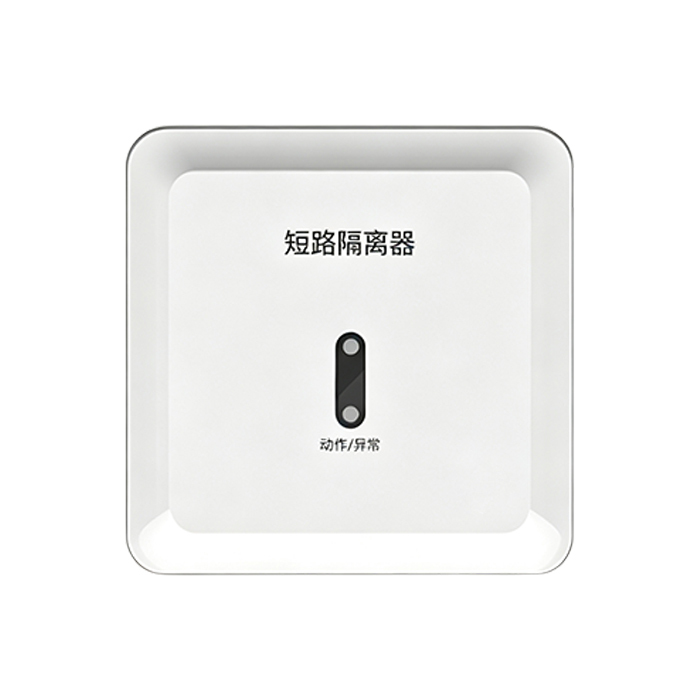

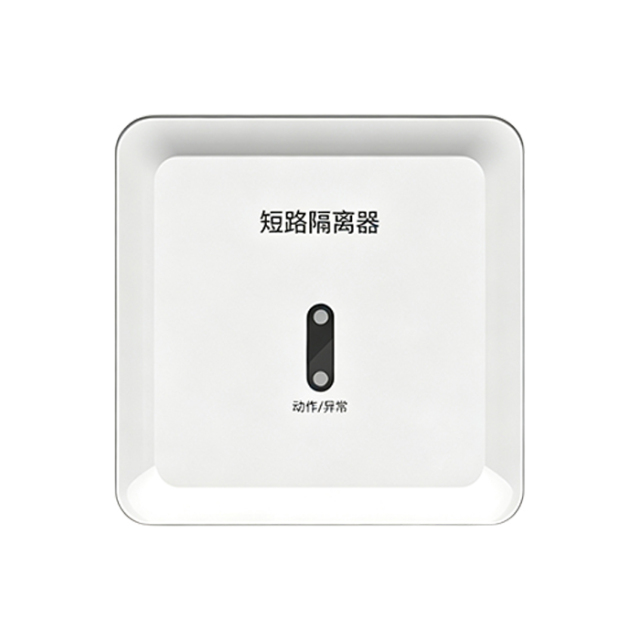

Non-polar Two-wire Fire Short-circuit Isolator

Model No.: GL-A59 Short-circuit Isolator
Operating Environment: Temperature: -10℃ ~ +50℃; Relative Humidity ≤95% (40℃±2℃, non-condensing)
Operating Voltage: Bus 24V
Operating Current: Quiescent Current < 2.5mA; Operating Current < 15mA
Protection Current: >400mA or >1200mA
Operating Indication: Status Indicator, flashes during polling, steady on when activated
Wiring Mode: Two-wire system
Installation Mode: Surface mounting on wall / Installed inside module box
