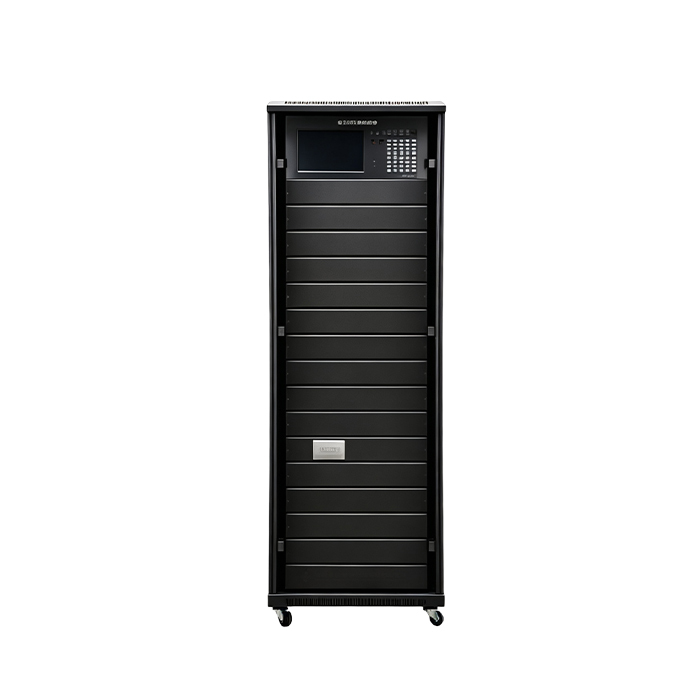

II. Application Scenarios of JB-QGL-DH5000 Electrical Fire Monitoring Equipment
This monitoring device is widely applied to unit power supply systems in hazardous material sites, high-rise buildings, public venues and residential buildings. III. Features of JB-QGL-DH5000 Electrical Fire Monitoring Equipment
Adopts a new-generation high-speed microprocessor. Compared with traditional technology, its data processing speed is increased by 100 times and data storage capacity by 1000 times.
Equipped with a 10-inch color LCD screen with a display resolution of 1024×600.
The operation interface adopts Windows-style menus and windows, conforming to computer operation habits, easy to learn.
Supports standard USB keyboard and mouse, or touch panel + panel buttons for on-site programming, enabling flexible and convenient operation.
Provides Pinyin, T9 Pinyin and Zone-bit code Chinese input methods to realize free Chinese character entry.
Supports intelligent storage USB flash drive (optional) to copy or restore system configuration files and historical files for easy system maintenance.
Adopts non-polar two-wire intelligent alarm linkage mode. A single loop can connect up to 324 intelligent detectors or modules; detector addresses can be mixed and selected from No.1 to No.324.
Fitted with multiple high-speed CAN bus interfaces for fast and reliable data transmission; supports large single-unit capacity with maximum 5×2×324 = 3240 alarm points.
System historical record function: stores up to 1000 records each for historical alarms, requests, feedbacks, faults and operations.
Users can customize device types to facilitate system integration. It supports single-point detector testing to clearly display detector working status and test data.
Standard equipped with a dedicated mini printer to print various system operating status in real time. It can be connected to regional, building or floor display panels to extend display information to corridors and other areas.
Supports connection with CRT-9000 fire control room graphic display unit (hereinafter referred to as CRT-9000) to intuitively show specific locations of alarms and faults (optional).
Implements multi-level user authority management. Different users are assigned corresponding operating permissions for convenient system administration.
Supports on-site or remote software upgrade to ensure stable and reliable system operation.
Complies with standard: GB 14287.1-2014 Electrical Fire Monitoring System.
