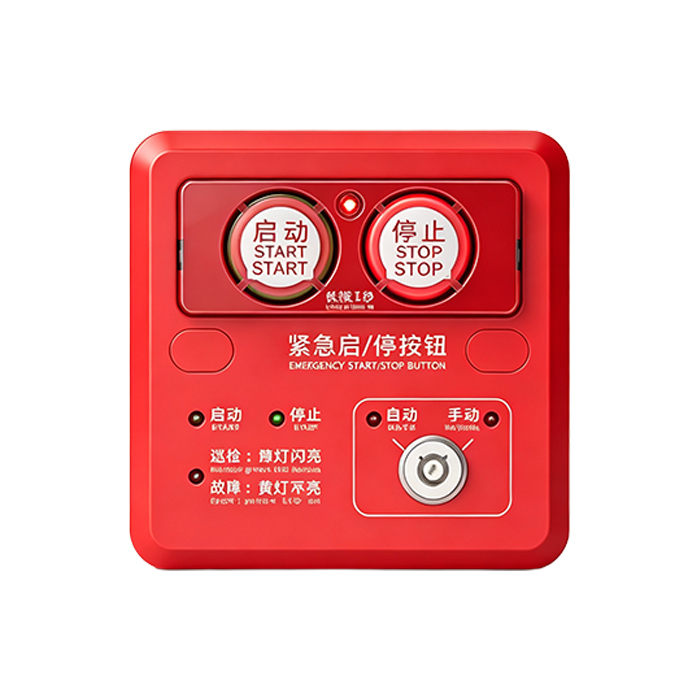

Model QM-MN-01 Emergency Start/Stop Button

Model No.: QM-MN-01
Operating Voltage: Bus 24V (Pulse Modulated)
Operating Current: Monitoring current ≤2.5mA; Actuating current <4mA
Start Mode: Manually press green start button (long press for 1s)
Dimensions: 90×90×46 (mm)
Weight: Approx. 108g
Operating Environment: Temperature: -10℃~+55℃ (±3℃); Relative Humidity ≤95% (40℃±2℃, non-condensing)
Wiring: Two-wire, non-polar signal two-bus (L1, L2)
Compatible Host: Gas Extinguishing Controller
